Titan 2

Wifi-enabled High performance DLP 3D Printer

  • Versatile, High-Resolution 3D printing between 37-100 microns for various applications
  • High speed printing
  • Maximum build height up to 9.8 in
  • Patented PSP (Passive Self-Peeling) technology:
    >> Passive double peeling mechanism
    >> Enhanced printing speed and surface quality
  • Web based controlling:
    >> Compatible with all PCs, Macs, smartphones and tablets
  • One device can be used to command and control multiple Titan 2 3D printers
  • Built-in Raspberry Pi
  • Shutter to reduce background exposure
  • New mesh-like build platform that reduces the vacuum force during separation
  • Simple setup procedure – only one power cord is required
  • Fully assembled body and pre-calibrated at XY 50μm
  • Long lifetime: Mechanical structure is all-metal and designed to last for 10 years
Kudo3D Titan 2

Titan 2 Specifications:

Kudo3D Titan 2 Web based controlling

Printing Features:

  • XY resolution: 37μm ~ 100μm (HD native pixel size)
  • Z resolution: 5μm (native gear resolution)
  • Maximum Build Size at 100 μm XY resolution:
    7.5 in x 4.3 in x 9.8 in (L x W x H)
  • Maximum print speed:
    2.7 in / hr for xy:50μm and z:100μm resolution

Hardware:

  • Machine Size: 16.1″ x 13.7″ x 33.6″ / 41cm x 35cm x 85cm
  • Weight: 30 lbs / 13.5 Kg
  • Flexible PSP resin container
  • THK’s high precision industrial grade linear stage module
  • HD DLP projector with a 2cm native 1920×1080 DMD chip by Texas Instruments
  • Raspberry Pi 3 with 16G memory
  • Compatible with 802.11N Wifi
  • Metal frame & case

Titan 2 Starter Printer Package: $3,488

Titan1 and Titan 2 comparison table

SpecificationsTitan 2Titan 1
HardwareMachine Size16.1 in x 13.7 in x 33.6 in16.1 in x 13.7 in x 33.6 in
Weight30 lbs30 lbs
Printing PropertiesXY resolution37μm ~ 100μm
(Upgradeable to 28um native pixel size)
37μm ~ 100μm
Finest Z resolution5μm5μm
Maximum Build Size
(for XY:100 μm resolution)
7.5 in x 4.3 in x 9.8 in7.5 in x 4.3 in x 9.8 in
Maximum print speed
(for XY:50μm and Z:100μm
2.7 in / hr2.7 in / hr
ControlControl softwareWeb-based
(No installation required)
Installation required
ConnectivityLan cable or Wi-FiUSB
Printer ControlPC, Mac, smartphone and tabletPC
Calibration & AssemblyPre-calibrationYesNo
AssemblyFully assembled bodyPartly assembled
OthersSpecial featuresLogo shines when printer is on
(For Emerald version only)
CoverEmerald or RubyRuby or Diamond

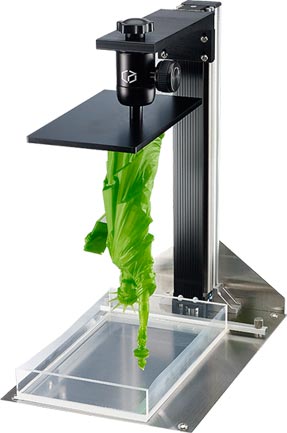

Kudo3D passive self-peeling (PSP) technology

What is passive self-peeling (PSP) technology?

Passive self-peeling (PSP) technology is a patented (US patent number 9,452,567), bottom-up, SLA technology, which was created by Kudo3D to minimize the separation force between the cured layers and the resin container. PSP employs a flexible resin container consisting of 5 different materials, which work together to aid in reducing the separation force. It ensures that feature as fine as a strand of hair and larger objects, up to 10 inches tall, can be printed with the same machine while maintaining staggering resolution and impressive speeds. Equipped with PSP, the printer only needs one single stepping motor. The structure of Titan 1 and Titan 2 is simplified and they are more reliable and easy to maintain.
